Sub-Zero Refrigerator Repair

Sub-Zero refrigerator repair in Denver: built-in, column, undercounter, wine storage and ice makers. The Appliance Team repairs Sub-Zero Classic, Designer, PRO and legacy 500, 600 and 700 Series refrigeration across the Denver metro and 30 surrounding cities. We diagnose with the same fault codes, diagnostic modes and thermistor tests the Sub-Zero service manuals use, and our technicians are EPA 608 certified for sealed-system and refrigerant work. The $99 service call is waived when you go ahead with the repair, you get a written quote before any work starts, and every repair carries a 90-day warranty on parts and labor.

4.9★ on Google · $99 service call waived with the repair · Written quote before any work · 90-day warranty on parts and labor · EPA 608 certified for sealed-system work · Careful removal and reinstall of custom panels

On this page: Common repairs · Real repair cases · Error codes · Quick checks · High altitude · Maintenance · Repair or replace · Cities we serve

Sub-Zero refrigeration is a big part of our everyday work. Our technicians, with more than 30 years of combined experience and over 10,000 appliance repairs behind the company, service Sub-Zero built-in, column, undercounter, wine storage and ice maker units in homes from Boulder and Longmont to Cherry Creek, Greenwood Village and Lone Tree. The repairs we do most often on Sub-Zero are condenser problems, ice makers, sealed-system work on the evaporator and heat exchanger, compressor start parts, defrost parts, drains, door gaskets, filters and controls.

Sub-Zero products and series we repair

A Sub-Zero model number tells you the series, the width and the type. The prefix is the series and the digits give the width, so CL3650 is a 36-inch Classic. The letters that follow give the type: B beverage center, C combination refrigerator/freezer, F all freezer, I ice maker, R all refrigerator, W wine storage, G glass door and A high-altitude glass door.

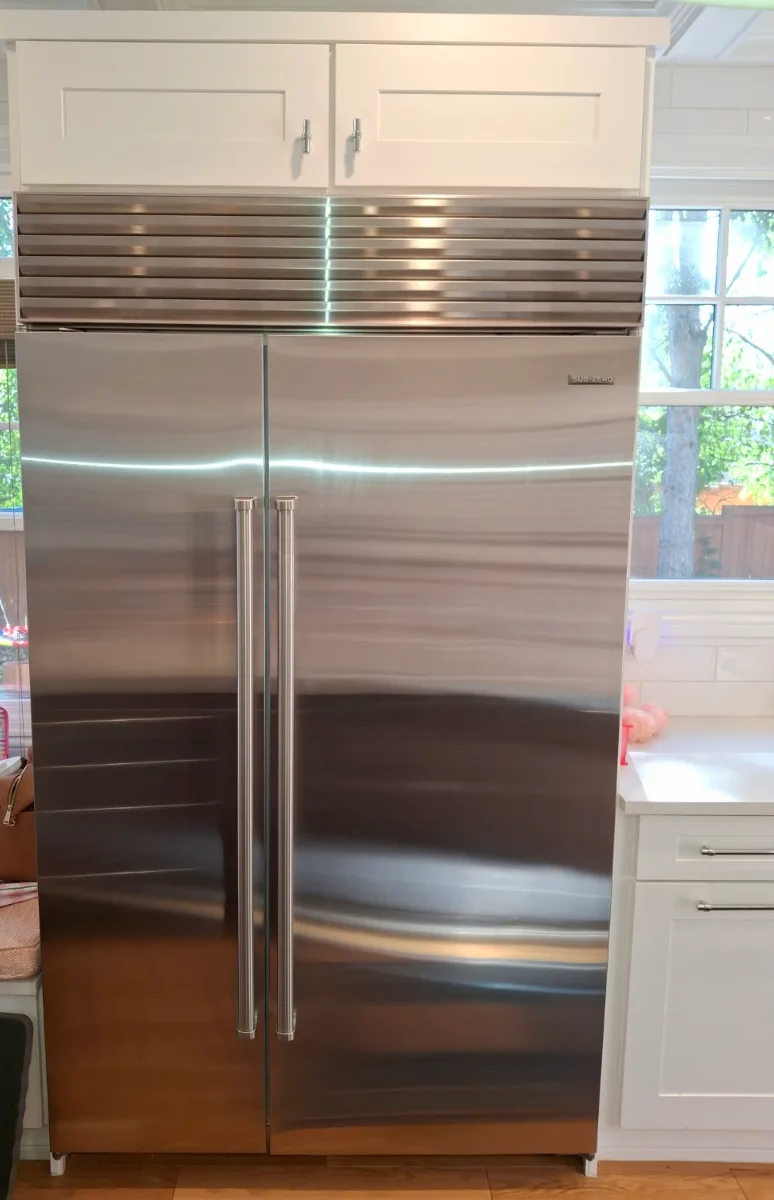

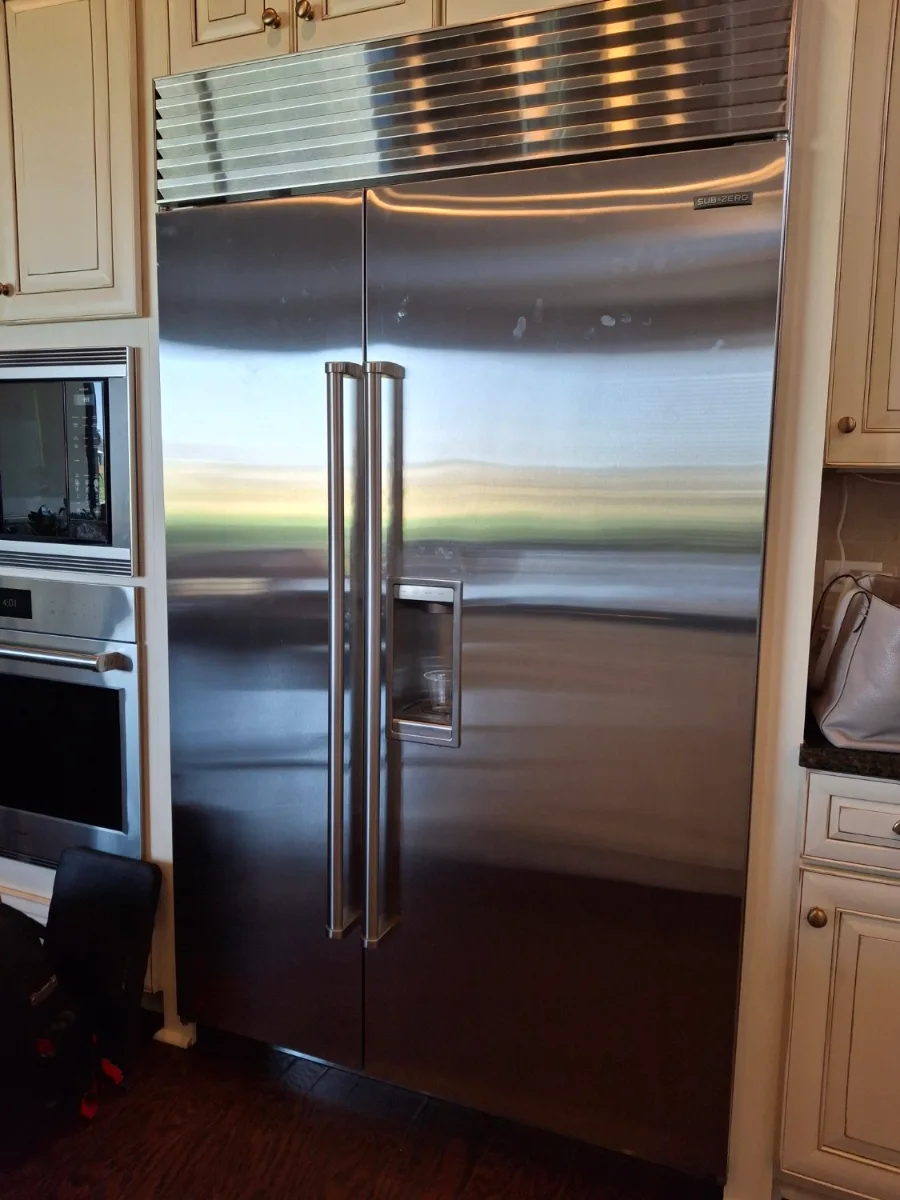

Sub-Zero refrigerators we service around Denver

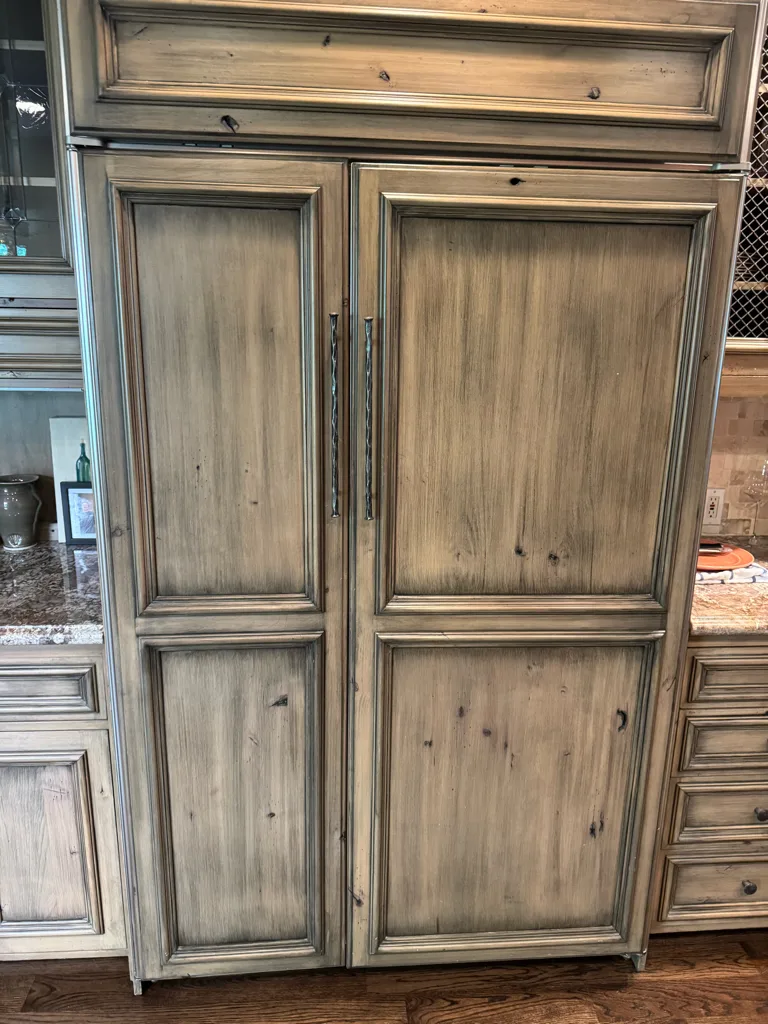

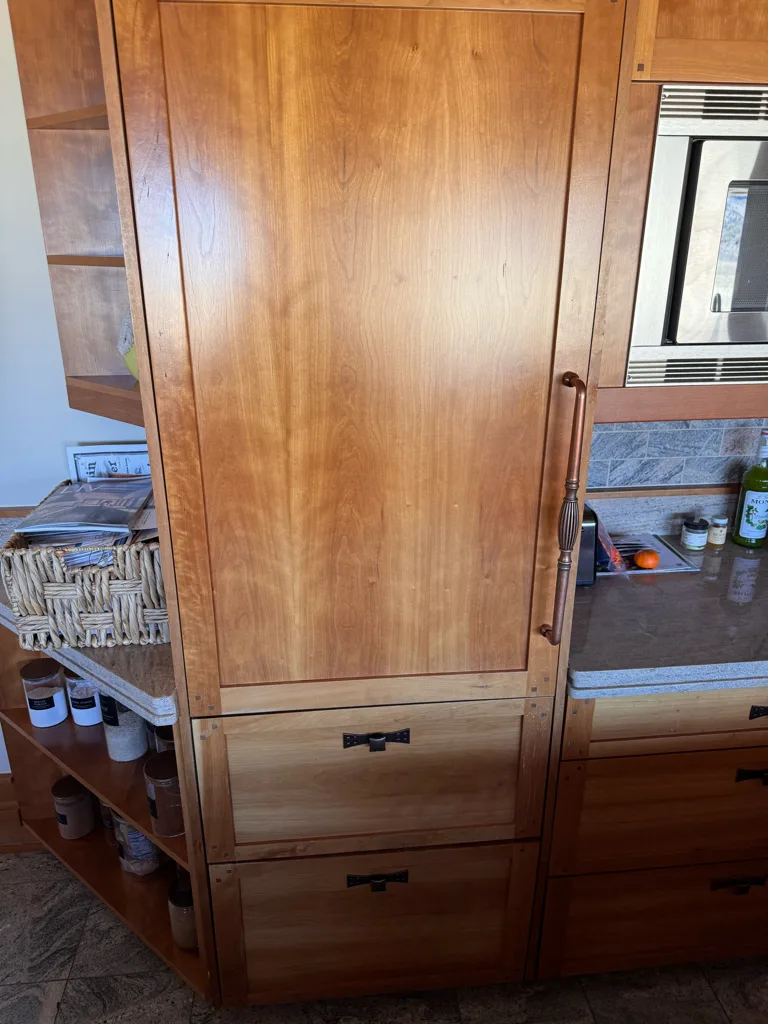

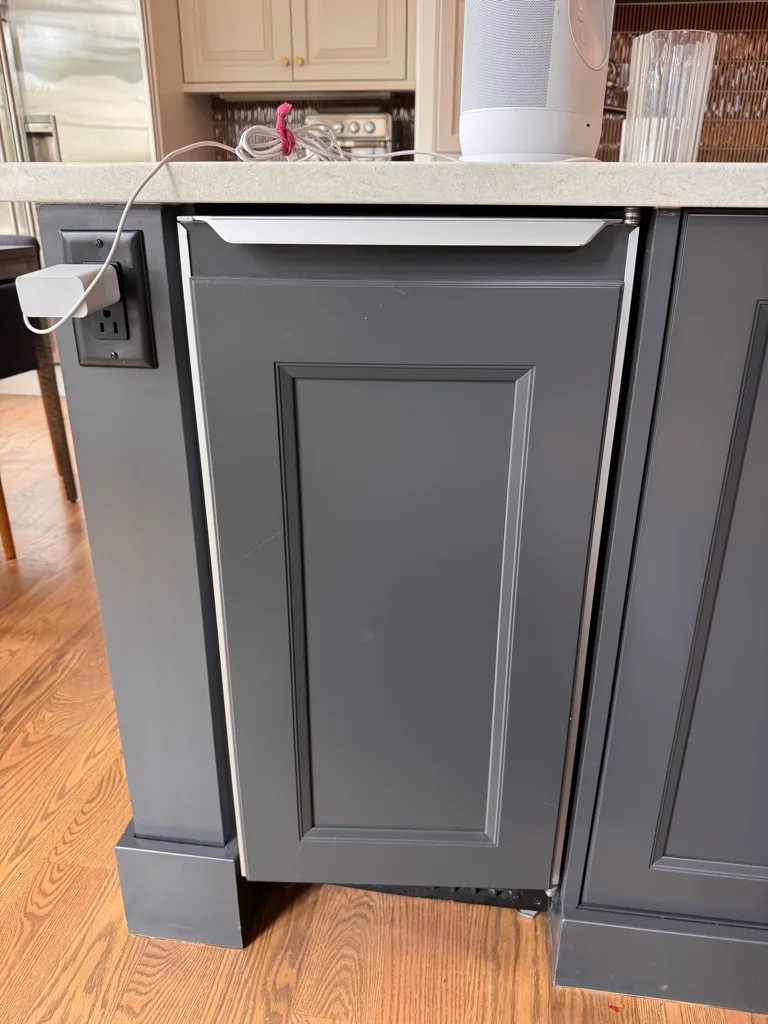

Most of the Sub-Zero units we see are built in, and many disappear behind the homeowner’s own cabinet panels. That matters for repair: the grille, kickplate and panels have to come off carefully, and the unit often has to be slid out of its opening and back in without scratching custom woodwork.

Most common Sub-Zero repairs

Excessive run time: the Service light, EC40 and EC50

Most Sub-Zero calls start with a flashing Service light: the compressor has run too long and cooling may be failing. Code 40 (EC40) points to the freezer side and code 50 (EC50) to the refrigerator side. Sub-Zero lists a blocked door, a dirty condenser, fan blades, a thermistor, the light switch and, less often, the sealed system. On Designer and 700 Series units, look at the kickplate: Sub-Zero warns that a custom toe kick covering it restricts airflow and can cause sealed-system failure. If the light returns after a condenser cleaning and a 30-second breaker reset, book service before the food warms up.

Classic BI code 15 1 01: often a software fix, not a board

On the Classic BI series, 15 1 01 reads as the refrigerator compressor relay stuck closed. For relay codes the manual says to replace the control board, but for 15 1 01 Sub-Zero now uses a CDP software update to version 2.0.51 or later, which silences the alarm. Replacement boards 7043869 and 7041549 packed after July 25, 2023 already have the update. We check the software version before quoting a board.

Ice makers: water pressure, freezer temperature and the fill tube

Sub-Zero ice makers need 20–100 psi of water pressure and a freezer at 5°F or colder (0°F recommended). Most no-ice calls trace to a closed supply valve, a restricting filter, a jammed cube or a frozen fill tube. When those check out, we test the water valve (about 160 ohms on the 600 Series), the fill-tube heater and the icemaker circuit.

What we actually find on Sub-Zero calls

Fault codes point us in the right direction, but the fix depends on what is behind the grille. These are the problems we repair most often, with photos from our own jobs.

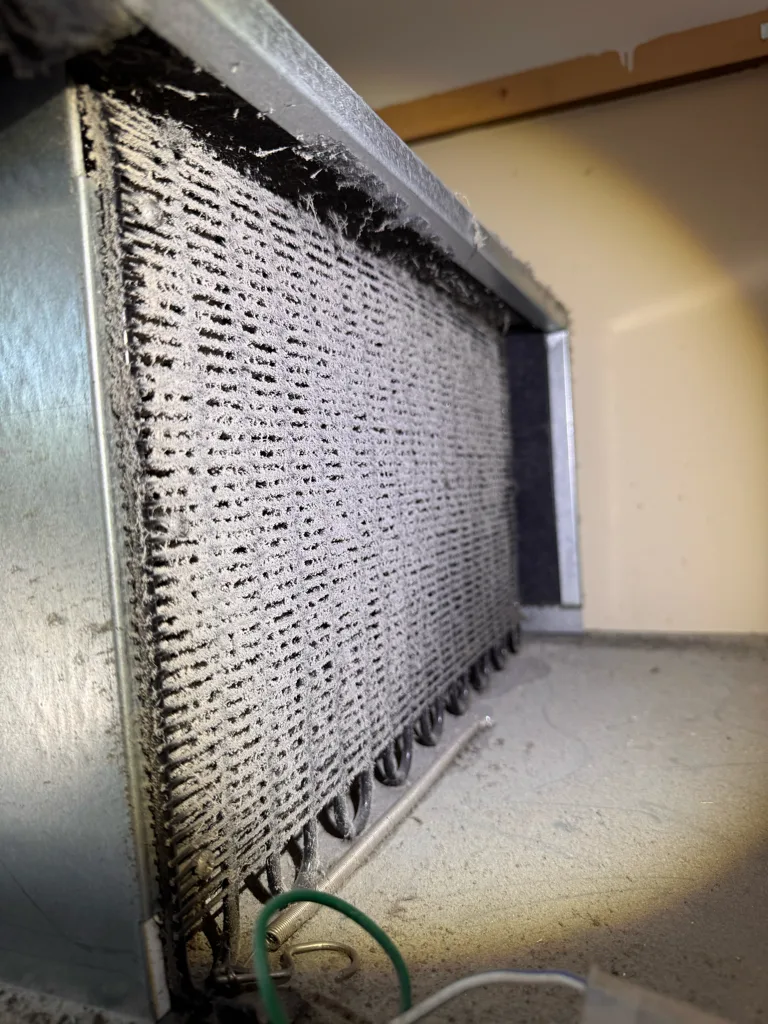

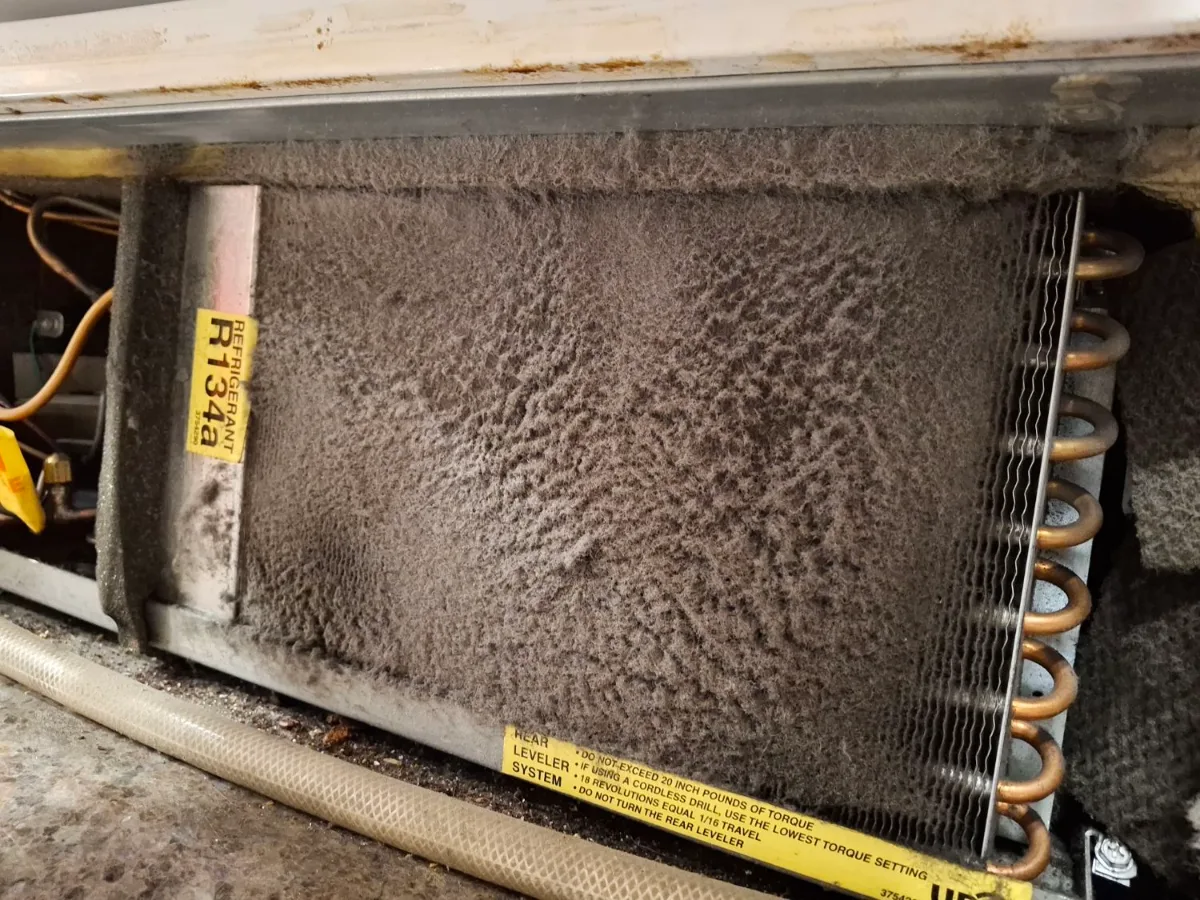

1. Dirty condenser: Service light, EC40, Vacuum Condenser

Sub-Zero calls condenser cleaning the one routine maintenance it recommends. On a built-in the condenser sits up top behind the grille, and on undercounter units it sits behind the kickplate, where dust, pet hair and kitchen grease collect. A packed condenser makes the compressor run too long, which is exactly what the EC40, EC50 and Vacuum Condenser messages report. In May 2026 a Sub-Zero with an EC40 code had a condenser like the one below. In July and September 2026 a condenser cleaning was the whole repair, and in September 2026 one of two Sub-Zero undercounter units in an office had a heavily clogged condenser.

If the outside of your Sub-Zero feels hot or the compressor seems to run all the time, a dirty condenser is the first thing to rule out. If the Service light comes back after cleaning, or the cabinet keeps warming, the cause is deeper.

2. Fresh food side warm: evaporator and heat exchanger

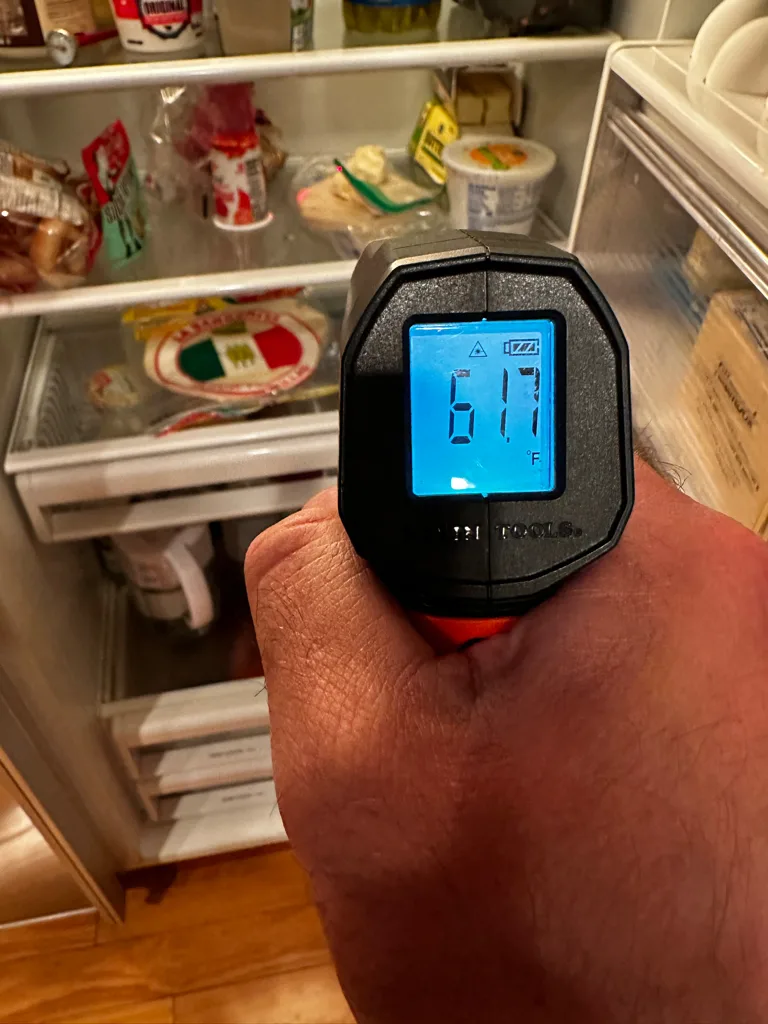

When the freezer is fine and the refrigerator side is warm, and the condenser is clean, we look at the sealed system. In October 2024 a Sub-Zero’s refrigerator side would not cool below 60 degrees while the freezer worked normally; it needed a new evaporator and heat exchanger. We did the same kind of sealed-system repair in January and August 2024. Our technicians are EPA 608 certified for this refrigerant work.

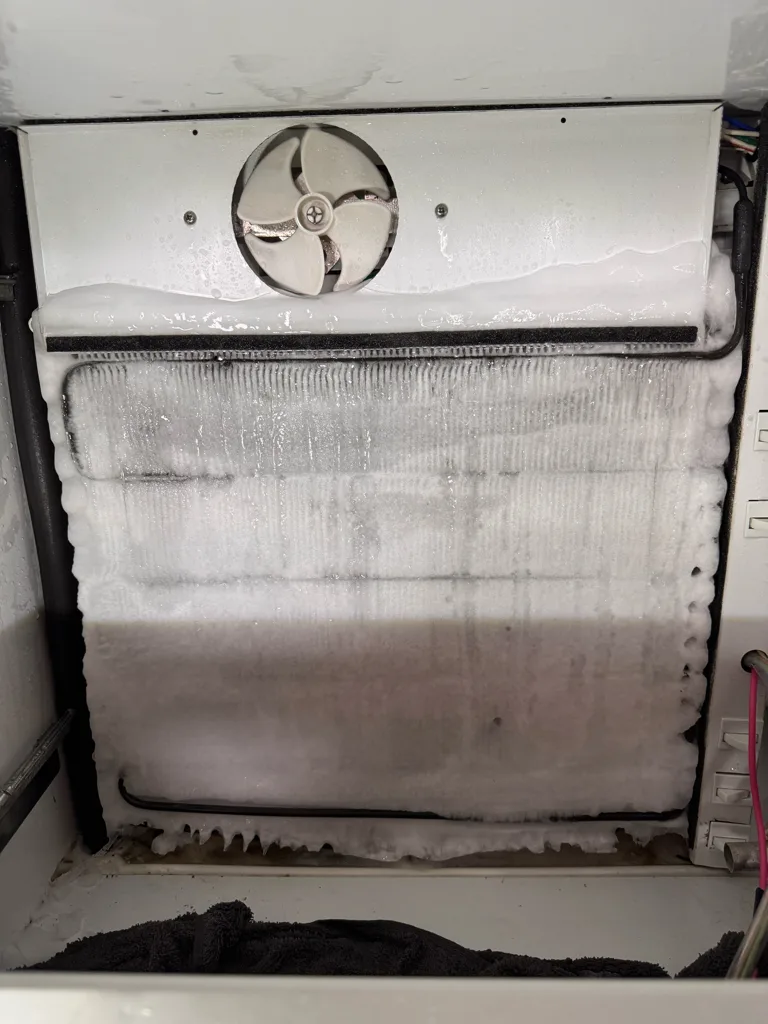

3. Freezer iced over: defrost

A Sub-Zero defrosts automatically. When the defrost heater, terminator or thermistor fails, frost builds up on the evaporator until air can no longer pass through it, and the freezer slowly warms. In November 2025 a Sub-Zero freezer at 20 degrees showed an EC code; the evaporator was solid ice and the defrost terminator had failed.

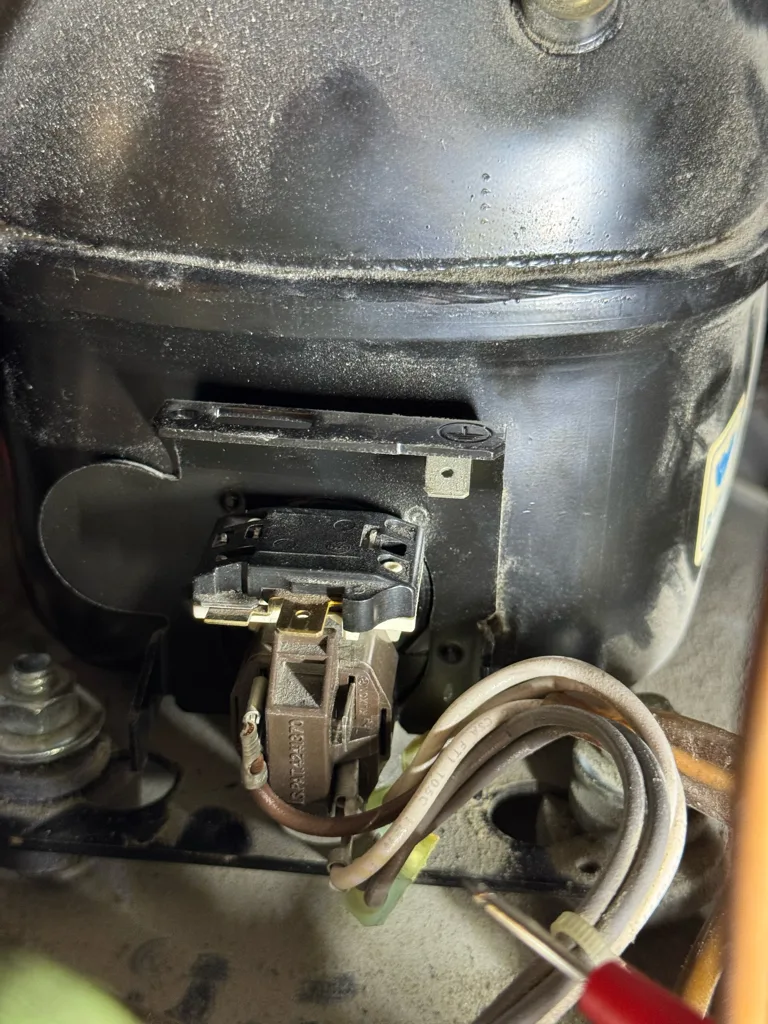

4. Compressor won’t start

A compressor that hums, clicks or stays silent is often fine; the parts that start it are not. In September 2025 a Sub-Zero’s fresh food compressor would not run until we replaced the capacitor, start relay and run relay, and in October 2025 a unit that stopped cooling about once a week needed a capacitor and overload relay. In March 2024 a Sub-Zero with no power to the compressor needed a new thermostat.

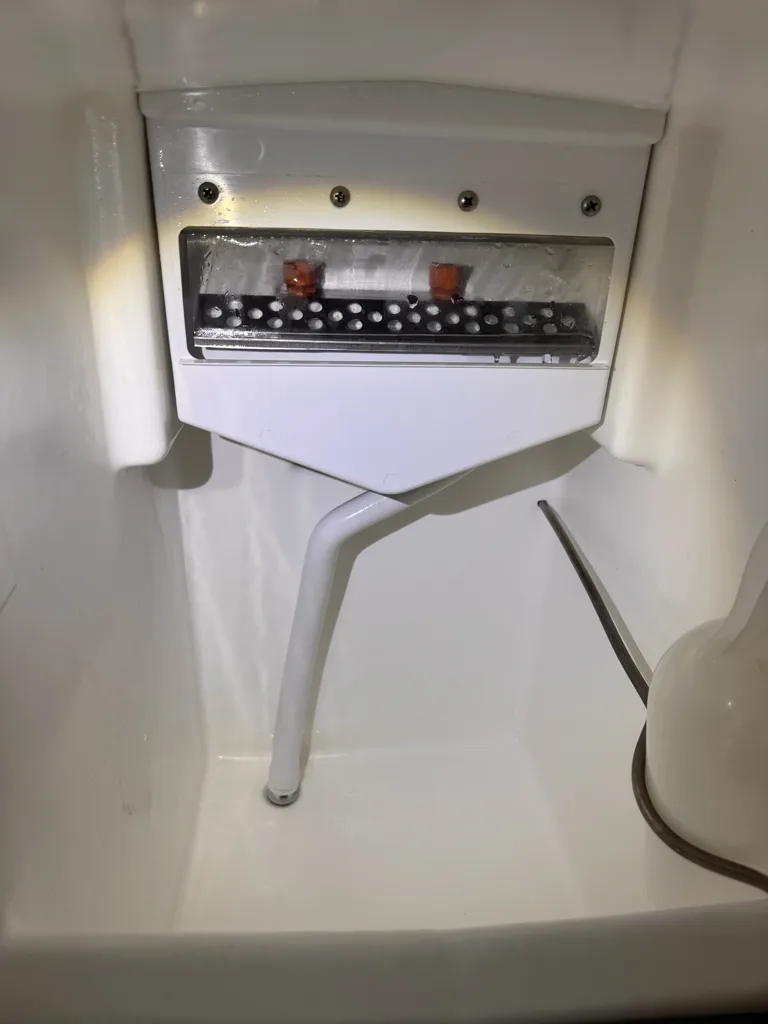

5. Ice maker not making ice

Ice maker trouble was our second most common Sub-Zero call. In July 2025 the ice maker itself had failed; in May 2026 it ran its test but never filled, and a new water valve fixed it; in July 2026 an ice maker stopped during the harvest cycle; and in March 2026 an ice maker needed cleaning and a new drain tube. On Classic (BI) models a flashing ice cube means the fill valve stayed open too long and was shut off to prevent flooding, so we always check water pressure and the inline filter first.

6. Leaks, beeping and doors

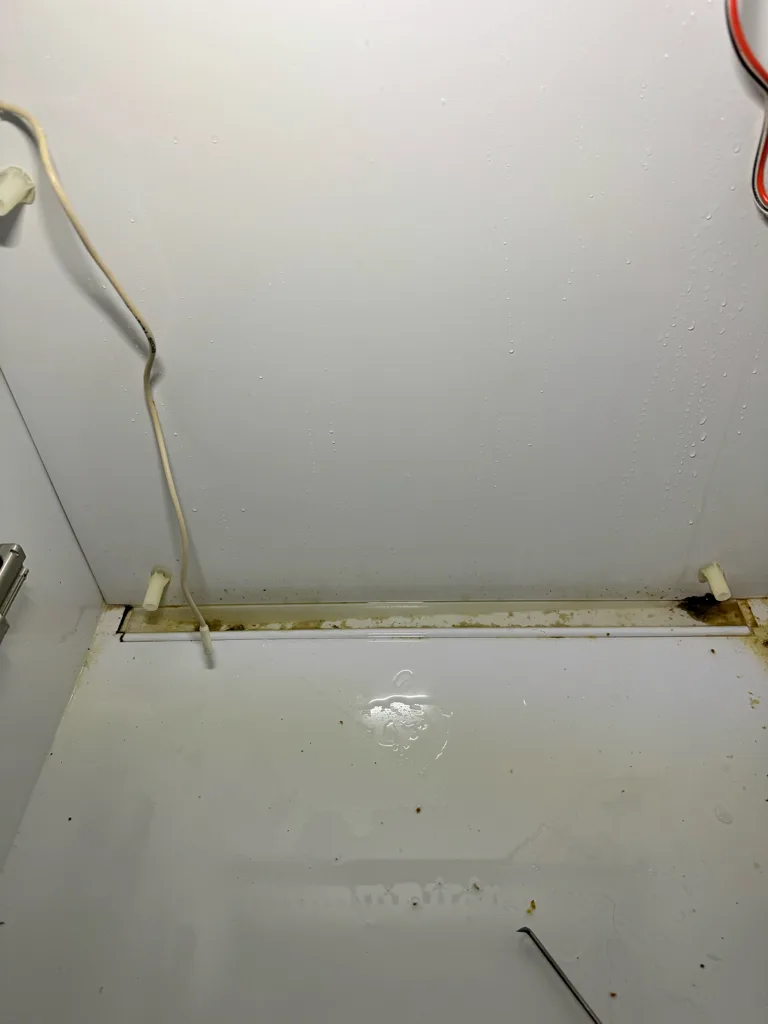

• Water on the floor. In October 2025 a leaking Sub-Zero had a blocked drain; clearing it stopped the leak. In March 2024 a Sub-Zero 642 left small puddles in front of it.

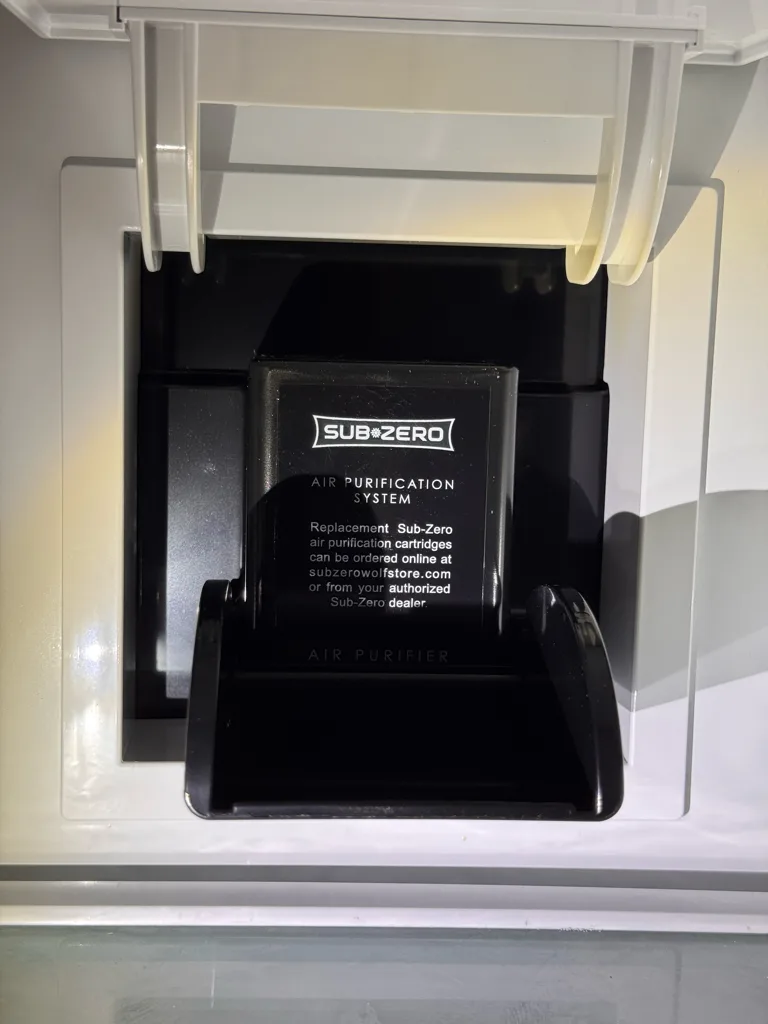

• Beeping and stopping. In March 2026 a BI-42SD that kept beeping needed a new water filter and air purification cartridge, and a condenser cleaning.
• Door gaskets and doors. A torn gasket lets warm air in and makes the compressor work harder; we found one in July 2026. In February 2024 a Sub-Zero needed a fan motor and a new gasket.
• Controls. In April 2026 we were called to a three-year-old Sub-Zero that had already had its control board replaced twice by another company and still was not cooling. We diagnose the whole system before quoting a board.

Service light back after cleaning the condenser, or the cabinet still warm? Call 720-230-1229. We answer 24/7 and can usually be there the same or next day.

From our Sub-Zero service log

• January 2024, temperature problem. A new evaporator, heat exchanger and filter drier.
• October 2024, fresh food at 60 degrees, freezer fine. A new evaporator and heat exchanger.
• July 2025, ice maker not working. We replaced the ice maker.
• September 2025, fresh food compressor not running. A new capacitor, start relay and run relay.
• October 2025, leaking water. The drain was blocked; we cleared it.

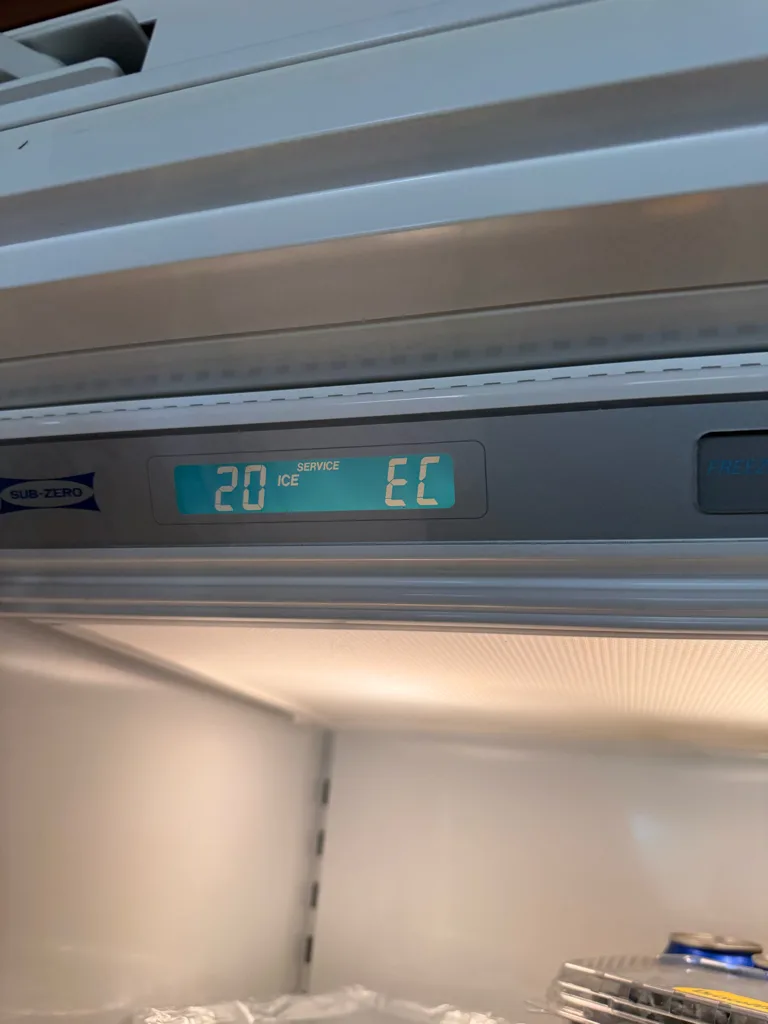

• November 2025, freezer not freezing, EC code. A failed defrost terminator and an iced evaporator.
• March 2026, beeping and stopping. New water and air filters and a condenser cleaning.
• May 2026, ice maker not filling, EC40. A new water valve and a condenser cleaning.
• September 2026, two undercounter units in an office. One had a clogged condenser; the other had a refrigerant leak.

Sub-Zero error codes and what they mean

Sub-Zero uses different code systems by series and control generation, so the same number can mean different things on a 600 Series and a Classic BI. Find your series first (see the serial tag table below), then use the matching table. How to read and clear them:

• Classic BI (3-part codes): with the unit on, hold a COLDER key, press POWER, release both. WARMER/COLDER scroll the codes. Holding ALARM 15 seconds clears them after a repair.
• 600 Series (2-digit codes): hold either COLDER key, press UNIT ON/OFF, release. Codes show before the temperatures. Hold the Alarm (bell) key 15 seconds to clear.
• 600, 648PRO and 700 Series EC codes: the display alternates EC with the number. Hold the door-ajar alarm key 15 seconds to clear, only if temperatures are near normal; otherwise leave it for the technician. 600 Series units below serial 1810000 have no alarm key: turn the unit off and on.

Write the code down before you call or clear it. It tells us which part to bring.

Indicator lights and alarm messages (all series)

600 Series (600-3) numeric codes

Classic BI Series 3-part codes (BI-30U to BI-48SID)

Classic BI codes read group, component, fault: 10 thermistors, 15 relays, 20 defrost, 30 ice and water, 35 fans, 40 run time, 60 compressor, 90 control, 95 sealed system.

Designer (formerly Integrated) codes

Code still on the display? Call 720-230-1229. We answer 24/7 and can usually be there the same or next day.

Before you call: safe checks

• Turn the breaker off for 30 seconds and back on. If the code returns, leave it for the technician.
• Vacuum the condenser grille with a soft brush. Don’t bend the fins and don’t use chemicals or degreasers.
• Make sure the door closes fully and the kickplate isn’t covered.
• For ice problems, confirm the water supply valve is open and the filter isn’t overdue, and set the freezer to 0°F.
• On a Classic BI showing LO C, check that the door light switch isn’t stuck, then keep the door closed for 45 minutes.

Denver and high-altitude notes for Sub-Zero

Denver sits at about 5,280 feet, and that matters for Sub-Zero glass-door units. Sub-Zero makes high-altitude glass doors engineered for installations above 5,000 feet, with no upper limit. On these models the type letter changes from G to A (CL3650RA, for example), and models that have no G simply add an A, as in UW-24A.

• A standard glass door installed at altitude can bow. A high-altitude door installed at low elevation can compromise the unit’s integrity.
• The two door types are not interchangeable. In a dual installation, both units need high-altitude doors so the trim lines up.
• Sub-Zero’s answer page says only stainless Classic (CL) units come with the high-altitude glass door, but retailer listings show A models in other lines, such as PRO3650A and DEU1550BA. Check the specific model number before you buy, move or replace a glass-door unit.

For condenser cleaning, we follow Sub-Zero’s own interval: every 6–12 months, and more often if you have pets.

Find your Sub-Zero model and serial number

Sub-Zero maintenance schedule

Factory warranty vs. our repair warranty

Sub-Zero’s residential limited warranty runs from the original installation date:

It excludes water and air filters and damage from negligence or improper installation, maintenance or repair.

We repair Sub-Zero appliances in or out of warranty, and the choice of who does the work is yours. Some owners call us during the warranty period because they want a faster appointment or a technician who works on Sub-Zero every day. If you prefer to file a claim with Sub-Zero, keep your proof of purchase handy; if you want us to fix it, you get a written quote before any work starts. Every repair we do carries our 90-day warranty on parts and labor.

Every repair we do carries our own 90-day warranty on parts and labor.

Repair or replace your Sub-Zero?

Sub-Zero says its products are designed to last about 20 years on average. A new built-in Sub-Zero costs many thousands of dollars and often means matching panels and cabinetry.

So most Sub-Zero repairs make sense: fans, thermistors, defrost parts, valves, ice makers, hinge cams and gaskets are routine. Inside the 12-year limited sealed-system coverage, sealed-system parts are covered and you pay labor. Replacement starts to make sense on an older unit with a failed sealed system outside coverage, or when a part is no longer available. We will tell you plainly when a repair isn’t worth it.

Sub-Zero repair near you

We repair Sub-Zero refrigeration in Denver and every city we serve across the metro, with same-day or next-day visits. Tap your city to see local service details:

See also our refrigerator repair, freezer repair and ice maker repair pages, and our Wolf, Thermador and True Residential brand pages.
